N,N′-(4,4′-Diphenylmethane)Bismaleimide (BMI) manufactured by Yangchen Tech is a high-performance thermosetting resin used as a matrix in adhesives, composites, and electronic materials. It is valued in aerospace, automotive, electronics and other industries for exceptional thermal and mechanical properties. In its solid form it appears as a light-yellow powder .

The molecular structure features two maleimide end-groups linked by a diphenylmethane bridge, which creates a rigid, highly crosslinked network upon curing. This architecture gives BMI resin outstanding thermal stability and strength, making it ideal for high-temperature adhesives and composite matrices.

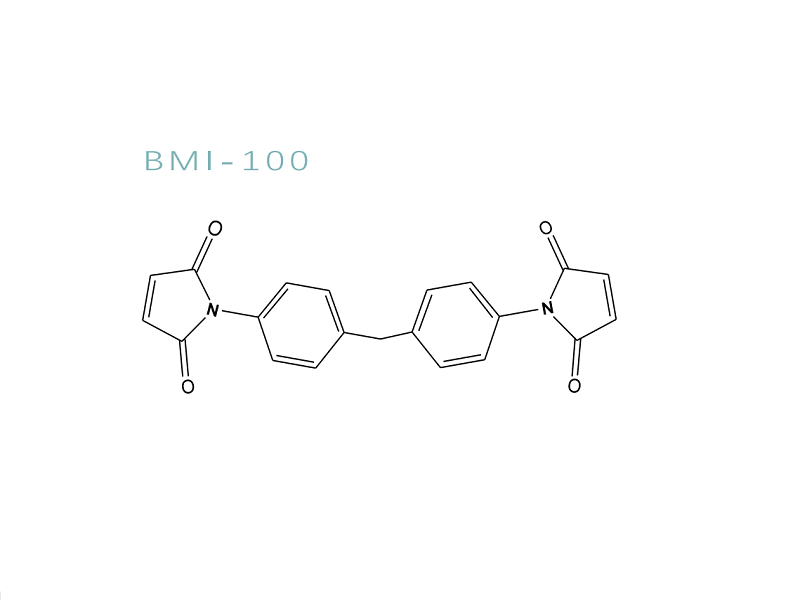

Molecular structure of N,N′-(4,4′-diphenylmethane)Bismaleimide (BMI) – two maleimide rings (green) bridged by a phenyl-methylene unit. The rigid aromatic structure yields a very high glass transition temperature (Tg) – typically >260°C – and continuous-use stability up to ~200–230°C. By contrast, standard epoxy resins begin to soften above ~150–180°C. In practical terms, BMI-based adhesives and composites maintain structural integrity in severe heat (e.g. under engine hoods or in avionics) where epoxies would degrade. For example, a BMI adhesive film (Final Advanced Materials 307) is rated for long-term use to 240°C. This exceptional heat resistance ensures that bonded joints and composite parts retain stiffness and strength under prolonged high-temperature exposure.

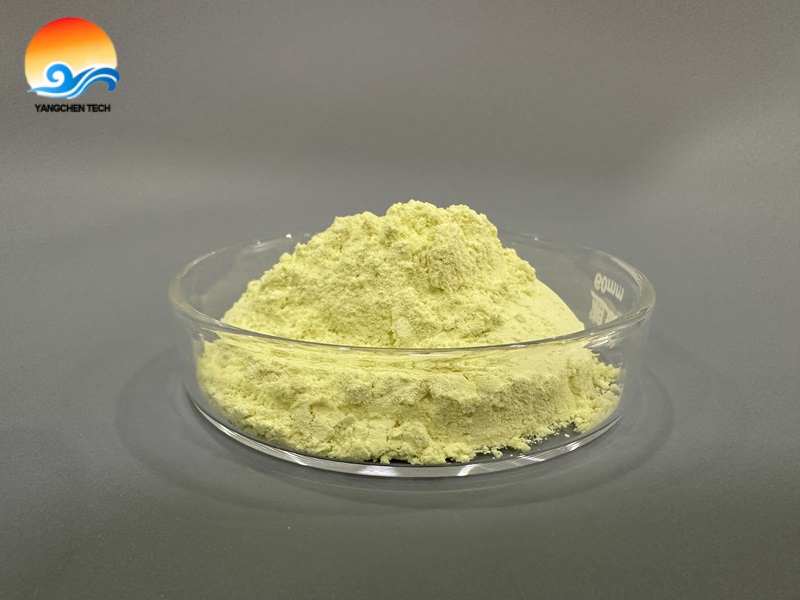

Yangchen Tech’s BMI resin – a light yellow powder. This form (light-yellow granular powder) is convenient for formulation into adhesives and polymer matrices. According to Yangchen Tech, BMI resin has a melting point around 155°C and is insoluble in water/ethanol but soluble in solvents like acetone or DMF. These properties facilitate easy handling (dry powder blending) and processing (complete cure at 180–250°C) in industrial formulations.

Outstanding Chemical Resistance

BMI resins are inherently inert to a wide range of chemicals and solvents, making them suitable for harsh environments. The imide rings and aromatic backbone resist hydrolysis and chemical attack. For instance, Yangchen Tech notes the material “has excellent resistance to a variety of chemical solvents and corrosive substances”. In practical tests, a BMI adhesive film (Final Advanced 307) showed “very high” resistance to strong acids (sulfuric, phosphoric, pH=1 at 60°C) and polar solvents (acetone, MEK, NMP). It also bonds well to chemically inert substrates (Al, PTFE, glass). By comparison, many epoxy or polyurethane adhesives can be degraded by strong solvents or acids; BMI-based systems maintain performance where epoxies cannot. This broad chemical stability means BMI adhesives and coatings last longer in aggressive media – e.g. chemical processing equipment or automotive under-hood components – and require less frequent maintenance.

Key features of BMI  resin include:

• Solvent Resistance: Excellent stability in ketones, esters and other organics. Final Advanced Materials reports its BMI adhesive is rated “very resistant to various chemicals”.
• Acid/Alkali Resistance: Effective stability in strong acids (tested at pH 1); alkali resistance is also generally high (though surface prep may be needed).
• Low Moisture Uptake: BMI absorbs <1% water, preserving insulating and mechanical properties in humid environments (important for electronics and outdoor composites).

These features allow BMI formulations to be used as durable insulation varnishes, chemical-resistant coatings, and structural adhesives in corrosive settings. As one application note states, BMI’s chemical inertness “extends the service life” of equipment in oil & gas, marine or chemical industries.
