N,N-4,4-diphenylmethyene bismaleimide

Home /N,N-4,4-diphenylmethyene bismaleimide /

N,N'-(4,4' DIPHENYLMETHANE)BISMALEIMIDE

N,N-4,4-diphenylmethyene bismaleimide BMI resin

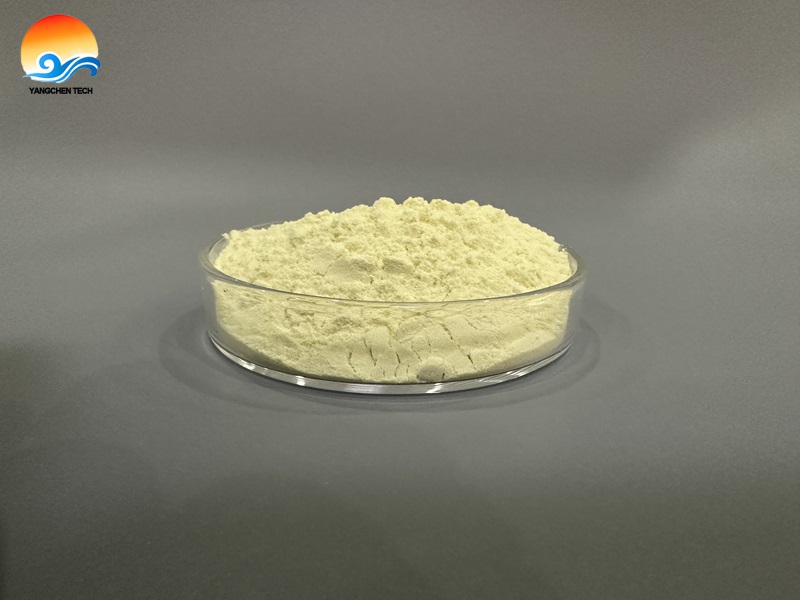

BMI powder
BMI powder

N,N'-(4,4' DIPHENYLMETHANE)BISMALEIMIDE

As an ideal resin matrix for manufacturing heat-resistant structural materials and H- or F-class electrical insulation materials, N,N'-(4,4' DIPHENYLMETHANE)BISMALEIMIDE is widely used in electronic insulation materials, advanced composite material matrix resins, engineering plastics and wear-resistant materials.

  • CAS No :

    13676-54-5
  • Name :

    N,N-4,4-diphenylmethyene bismaleimide
  • Abbreviation :

    BMI or BDM
  • Appearance :

    Yellow powder
  • Molecular Formula :

    C21H14N2O4
  • Molecular weight :

    358.37
  • Lead Time :

    5-7 Days
  • Shipping port :

    Shanghai



Chemical name: N,N'-(4,4' DIPHENYLMETHANE)BISMALEIMIDE

Abbreviation: BMI or BDM

Molecular formula: C21H14N2O4

Molecular weight: 358.37

Appearance: Light yellow solid powder;

Melting point: 150~160°C;

Solubility: Hardly soluble in water and ethanol, easily soluble in acetone and dimethylformamide.

CAS NO: 13676-54-5

We provide you with free samples!Welcome Inquiry!

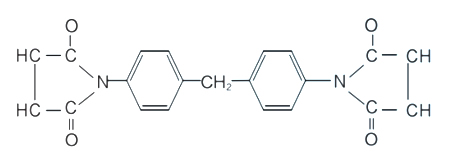

Structure formula of BMI resin





Certification of Analysis





ITEM

Limits

Results

Appearance

Yellow powder

Yellow powder

Solubility

Dissolved, with trace impurities

Fully soluble, clear

Melting Point℃

150-160

155-158

Ash%

≤0.3

0.06

Water%

≤0.5

0.12

Acidity mgkoH/g

≤5

1.0

Gel time

≤300

160







Application of N,N'-(4,4' DIPHENYLMETHANE)BISMALEIMIDE manufactured by Yangchen Tech



BMI application areas known as the high temperature of the universal plastic polyamine - bismaleimide is also increasingly widely used in many areas of high and new technology, mainly:

1. Motor insulation materials

High-temperature impregnation paint (solvent and solvent-free), enameled wire paint, laminates, weftless tape, mica tape, electronic copper-clad plate, moulded plastics, epoxy-modified F ~ H-class powder coating, casting parts, and so on;

2.Advanced composite material matrix resin

Aerospace, aviation structural materials, carbon fibre high-temperature resistant structural parts, high-grade printed circuit boards and other functional materials, etc;

3.Engineering plastics

Such as polypropylene PP, nylon PA, ABS, APC, PVC, PBT, EPDM, PMMA and other materials, enhancement modifier (such as polypropylene glass fibre enhancement modification by adding <1% of BMI-01, you can make the mechanical strength and martin heat-resistant doubled, the effect is significant), but also can be used for the new type of rubber vulcanising agent;

4.Wear-resistant materials

Diamond grinding wheels, heavy-duty grinding wheels, brake pads, high-temperature bearing adhesives, magnetic materials and so on;

5.Others

Oil-free lubrication of fertiliser-generating (synthetic ammonia) machinery and equipment, dynamic and static sealing materials, and many other high-tech fields.



BMI  manufactured by Yangchen Tech as a heat-resistant structural materials, H-class or F-class electrical insulation materials, a more ideal resin matrix, widely used in aviation, aerospace, electric power, electronics, computers, communications, automobiles, railways, construction and other industrial fields.

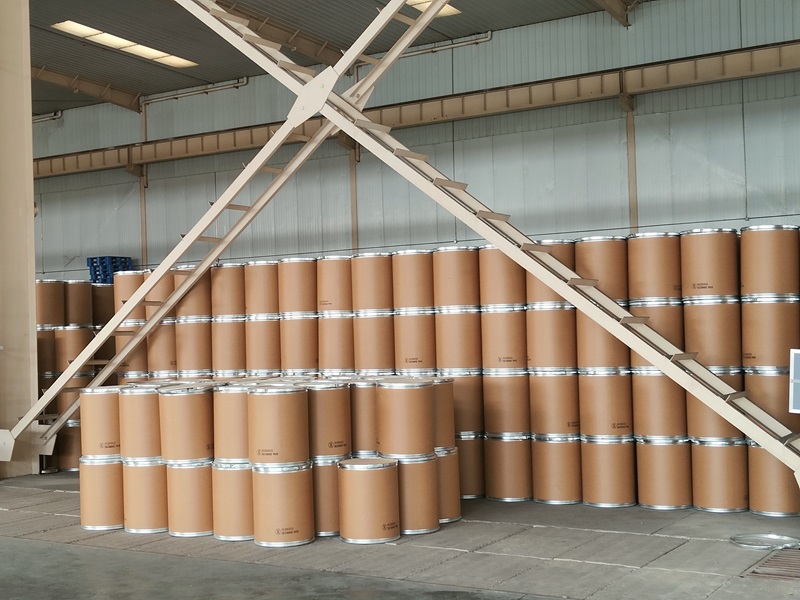

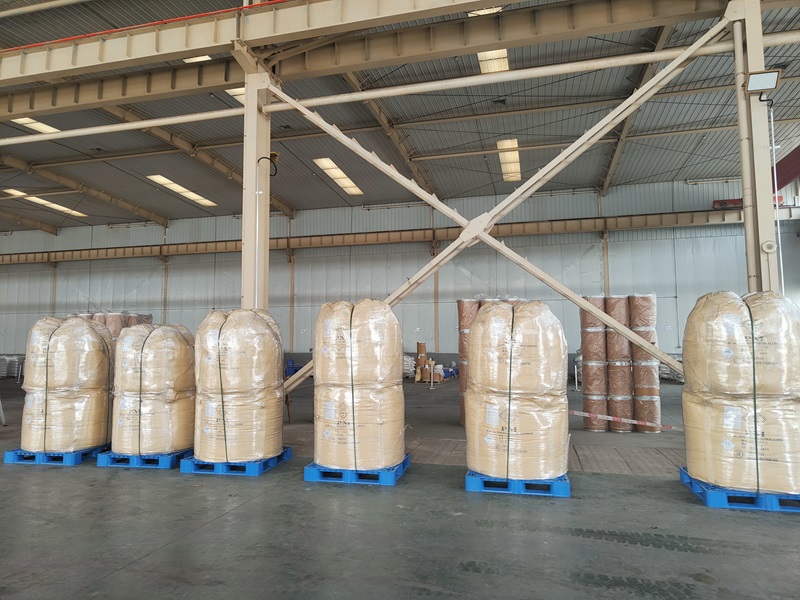

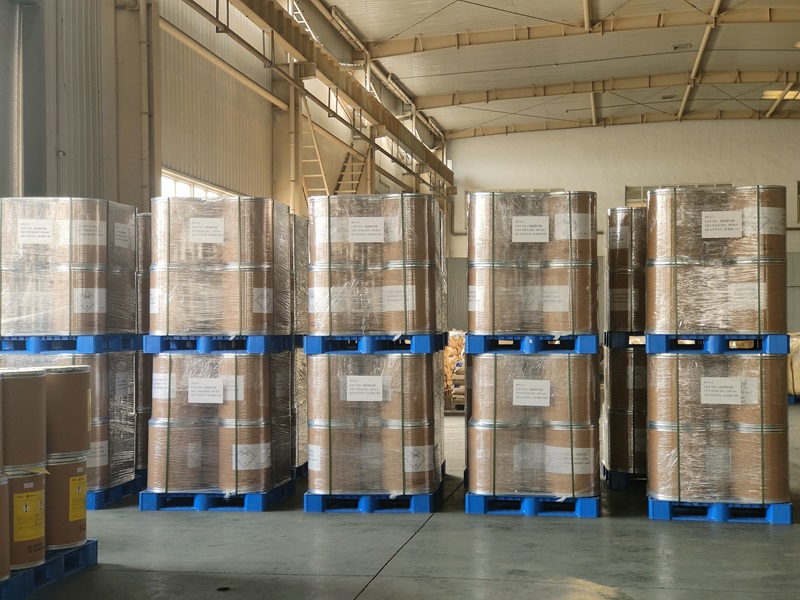

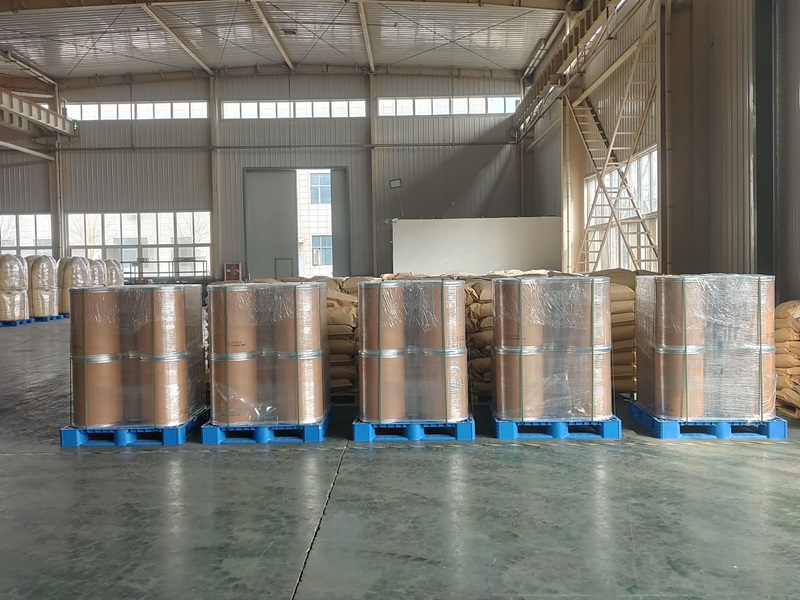

Our warehouse





Packging

PE bag lined with PE film, net weight 25kg/bag.



About us



FAQ

Q1: Is Yangchen Tech a manufacturer or trading company?

A: We are the first N,N'-(4,4' DIPHENYLMETHANE)BISMALEIMIDE manufacturer in China, with an annual production capacity of 3000 tons.



Q2: Does Yangchen Tech provide free samples?

A: We can provide you with free samples for your testing .



Q3: How to pay for the order?

A: We accept payment by T/T.



Q4: Does Yangchen Tech provide technical support for customers?

A: Yes, we do. Each customer's application is unique in some ways. Our customized services of BMI are designed to better meet your needs. Based on our 30+ years of experience in the rubber additives industry, we can provide technical support services based on your specific needs.
